USask Art Application Profile

note

Dataset Status: Published

Purpose

To document how the University of Saskatchewan Art Collection data is modelled for compatibility with the wider LINCS data model. This document provides patterns used in the mapping of University of Saskatchewan Art Gallery data which correspond to the categories outlined in the LINCS Application Profile Main Document.

This document introduces class and property concepts as used in this specific context (LINCS and the University of Saskatchewan Art Gallery dataset), and are not complete definitions. Consult CIDOC CRM v. 7.1.1 documentation for full class and property descriptions.

Acronyms

Ontology Acronyms:

CIDOC-CRM - CIDOC Conceptual Reference Model

Vocabulary and Authority Acronyms:

AAT - Getty Art & Architecture Thesaurus
LINCS - LINCS minted entities
ULAN - Getty Union List of Artist Names
Wikidata - Wikimedia Knowledge Base

Main Classes

Entity Type	Class	Declaration Snippet (TTL)
Artwork	crm:E22_Human-Made_Object	`<artwork> a crm:E22_Human-Made_Object ; crm:P2_has_type aat:300133025 .`
Accession Number	crm:E42_Identifier	`<accession_number> a crm:E42_Identifier ; crm:P2_has_type aat:300312355 .`
Title	crm:E33_E41_Linguistic_Appellation	`<title> a crm:E33_E41_Linguistic_Appellation ; crm:P2_has_type aat:300417193 .`
Classification	crm:E55_Type	`<classification> a crm:E55_Type .`
Image	crm:E36_Visual_Item	`<image> a crm:E36_Visual_Item .`
Production Event	crm:E12_Production	`<production_event> a crm:E12_Production ; crm:P2_has_type aat:300404387 .`
Actor (e.g., maker, owner)	crm:E39_Actor* subclass E21_Person or E74_Group used where possible	`<actor> a crm:E39_Actor .`
Materials Statement	crm:E33_Linguistic_Object	`<dimensions_label> a crm:E33_Linguistic_Object ; crm:P2_has_type aat:300435429 .`
Medium	crm:E57_Material	`<medium> a crm:E57_Material .`
Dimension Statement	crm:E33_Linguistic_Object	`<dimension_statement> a crm:E33_Linguistic_Object ; crm:P2_has_type aat:300435430 .`
Dimension Measurements	crm:E54_Dimension	`<dimension_measurements> a crm:E54_Dimension ; crm:P2_has_type <dimension_type> .`
Credit Line	crm:E33_Linguistic_Object	`<credit_line> a crm:E33_Linguistic_Object ; rm:P2_has_type aat:300435418 .`
Acquisition Event	crm:E8_Acquisition	`<acquisition_event> a crm:E8_Acquisition .`

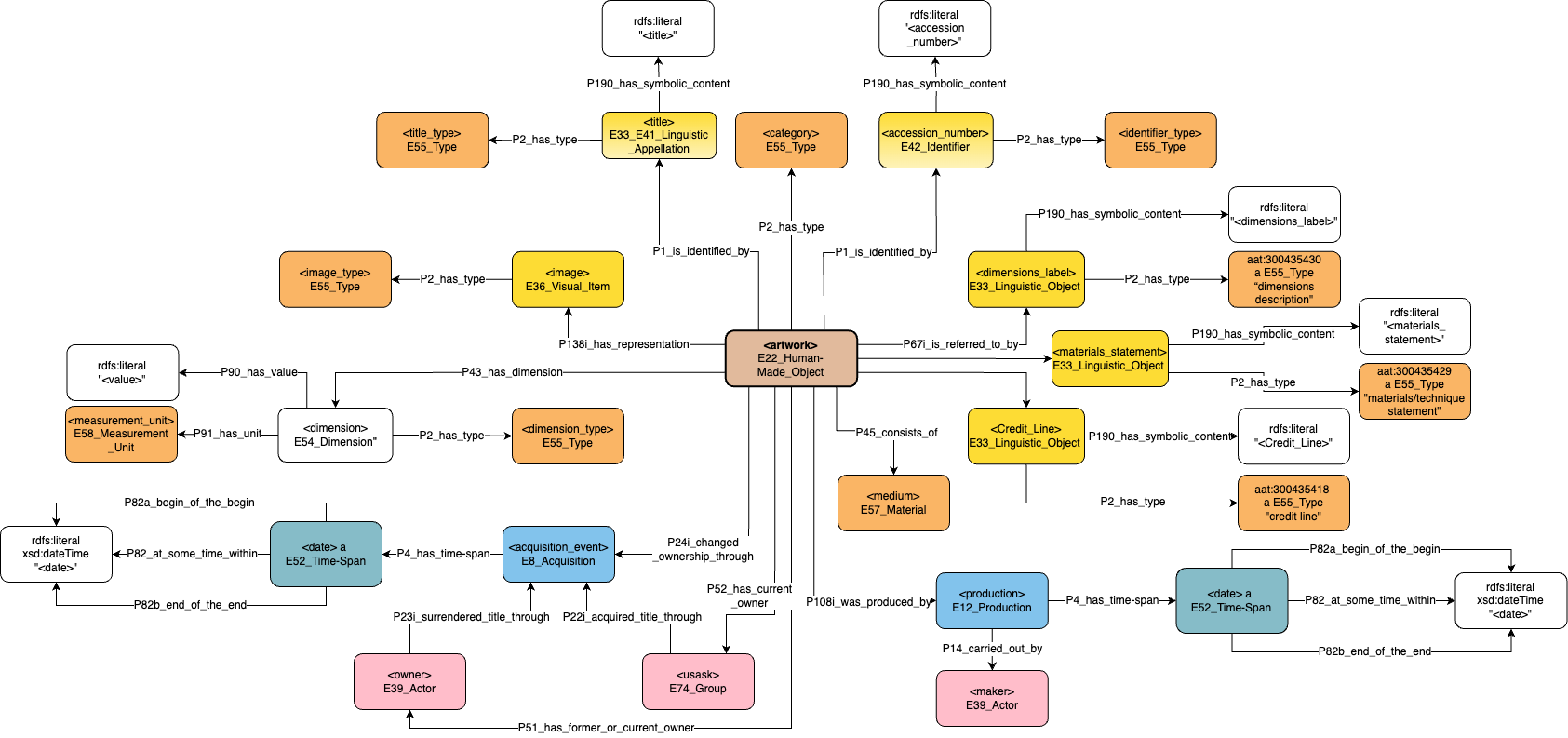

Overview Diagram

Below is an image of the application profile overview diagram. Follow this link for a zoomable, more readable version. The segments below align with the document sections.

Nodes

Basic Patterns

Identifiers

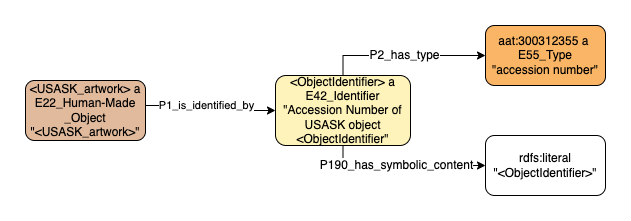

Accession Numbers

Pattern/Structure Values	Definition	This pattern declares that an object is identified by an accession number.
Pattern/Structure Values	Abstraction	`crm:E22_Human-Made_Object → crm:P1_is_identified_by → crm:E42_Identifier → crm:P2_has_type → crm` `aat:300312355` `→ crm:P190_has_symbolic_content → rdfs:literal`
Content Values	Type of Value	Literal value (text)
	Expected Value	Literal value (text) from the University of Saskatchewan Art Gallery dataset
	Format/Requirements for the Value	rdfs:literal
	Example Values	“2020.006.001”; “2020.013.001”; “2020.008.008”
Case Examples	Typical Example & Abstraction	The University of Saskatchewan Art Gallery dataset states that there is an object that is identified by the accession number “2020.008.008.” `<usask:3359> → crm:P1_is_identified_by → crm:E42_Identifier → crm:P2_has_type → <aat:300312355> → crm:P190_has_symbolic_content → “2020.008.008”`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links		The Getty Research Institute. (2017, March 7). Art & Architecture Thesaurus Online. https://www.getty.edu/research/tools/vocabularies/aat/
Discussion Elements Pertaining to the Pattern		N/A
USask Elements Following this Pattern		Object Identifier

Pattern in TTL:

<USASK_artwork> a crm:E22_Human-Made_Object ;
rdfs:label "<USASK_artwork>" ;
crm:P1_is_identified_by <ObjectIdentifier> .

<ObjectIdentifier> a crm:E42_Identifier ;
    rdfs:label "Accession Number of University of Saskatchewan Art Gallery object <ObjectIdentifier>" ;
	crm:P2_has_type aat:300312355 ;
	crm:P190_has_symbolic_content "<ObjectIdentifier>" .

aat:300312355 a crm:E55_Type ;
	rdfs:label "accession number" .

SPARQL: USask data that follows the Unique Identifiers pattern

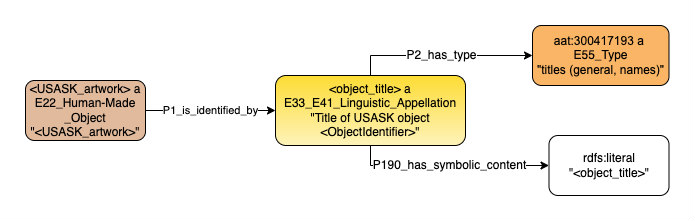

Titles

Pattern/Structure Values	Definition	This pattern declares that an object is identified by a title.
Pattern/Structure Values	Abstraction	`crm:E22_Human-Made_Object → crm:P1_is_identified_by → crm:E33_E41_Linguistic_Appellation → crm:P2_has_type → crm` `aat:300417193` `→ crm:P190_has_Symbolic_content → rdfs:literal`
Content Values	Type of Value	literal value (text)
	Expected Value	Literal value (text) from the University of Saskatchewan Art Gallery dataset
	Format/Requirements for the Value	rdfs:literal
	Example Values	“Antics”; “On the Town”; “New Model”
Case Examples	Typical Example & Abstraction	The University of Saskatchewan Art Gallery dataset states that there is an object with the title “Antics.” `<usask:3359> → crm:P1_is_identified_by → crm:E33_E41_Linguistic_Appellation → crm:P2_has_type → <aat:300417193> → crm:P190_has_Symbolic_content → “Antics”`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links		The Getty Research Institute. (2017, March 7). Art & Architecture Thesaurus Online. https://www.getty.edu/research/tools/vocabularies/aat/
Discussion Elements Pertaining to the Pattern		N/A
USask Elements Following this Pattern		Object Title 1; Object Title 2

Pattern in TTL:

<USASK_artwork> a crm:E22_Human-Made_Object ;
rdfs:label "<USASK_artwork>" ;
crm:P1_is_identified_by <Object_title> .

<object_title> a crm:E33_E41_Linguistic_Appellation ;
	rdfs:label "Title of University of Saskatchewan Art Gallery
object <ObjectIdentifier>" ;
crm:P2_has_type aat:300417193 ;
	crm:P190_has_symbolic_content "<object_title>" .

aat:300417193 a crm:E55_Type ;
	rdfs:label "titles (general, names)" .

SPARQL: USask data that follows the Titles pattern

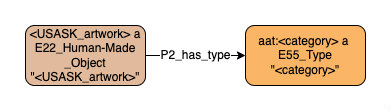

Categories & Classifications (Types)

Pattern/Structure Values	Definition	This pattern declares that an object is categorized by a classification term.
Pattern/Structure Values	Abstraction	`crm:E22_Human-Made_Object → crm:P2_has_type → crm:E55_Type`
Content Values	Type of Value	Uniform Resource Identifier (URI)
	Expected Value	URI from the Art & Architecture Thesaurus (AAT)
	Format/Requirements for the Value	URI (preferably dereferenceable)
	Example Values	<http://vocab.getty.edu/aat/300033618>; <http://vocab.getty.edu/aat/300015637>; <http://vocab.getty.edu/aat/300133025>
Case Examples	Typical Example & Abstraction	The University of Saskatchewan Art Gallery dataset states that there is an object that is categorized as a painting. `<usask:3359> → crm:P2_has_type → <aat:300033618>`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links		The Getty Research Institute. (2017, March 7). Art & Architecture Thesaurus Online. https://www.getty.edu/research/tools/vocabularies/aat/
Discussion Elements Pertaining to the Pattern		N/A
USask Elements Following this Pattern		Category

Pattern in TTL:

<USASK_artwork> a crm:E22_Human-Made_Object ;
rdfs:label "<USASK_artwork>" ;
crm:P2_has_type aat:<category> .

aat:<category> a crm:E55_Type ;
	rdfs:label "<category>" .

SPARQL: USask data that follows the Types pattern

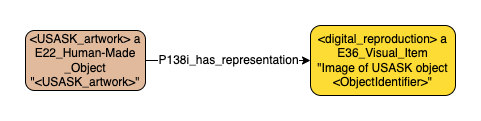

Visual Representation

Pattern/Structure Values	Definition	This pattern declares that an object is represented by an image.
Pattern/Structure Values	Abstraction	`crm:E22_Human-Made_Object → crm:P138i_has_representation → crm:E36_Visual_Item`
Content Values	Type of Value	Uniform Resource Identifier (URI)
	Expected Value	URI from the University of Saskatchewan Art Gallery dataset
	Format/Requirements for the Value	URI (preferably dereferenceable)
	Example Values	<https://saskcollections.org/kenderdine/media/sask_kenderdine/images/1/2/4/84567_ca_object_representations_media_12414_page.jpg>; <https://saskcollections.org/kenderdine/media/sask_kenderdine/images/6/8/27647_ca_object_representations_media_6821_page.jpg>; <https://saskcollections.org/kenderdine/media/sask_kenderdine/images/1/1/2/68332_ca_object_representations_media_11273_page.jpg>
Case Examples	Typical Example & Abstraction	The University of Saskatchewan Art Gallery dataset states that there is an object that is represented by an image. `<usask:3359> → crm:P138i_has_representation →` `<usask:84567_ca_object_representations_media_12414_page.jpg>`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links		N/A
Discussion Elements Pertaining to the Pattern		N/A
USask Elements Following this Pattern		Image

Pattern in TTL:

<USASK_artwork> a crm:E22_Human-Made_Object ;
	rdfs:label "<USASK_artwork>" ;
	crm:P138i_has_representation <digital_reproduction> .

<digital_reproduction> a crm:E36_Visual_Item ;
	rdfs:label "Image of University of Saskatchewan Art Gallery
object <ObjectIdentifier>" .

SPARQL: USask data that follows the Representation - Visual Item pattern

Physical Objects

Production

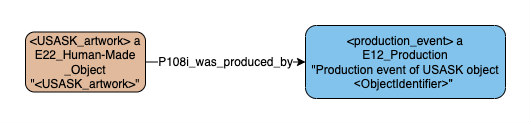

Production Event

Pattern/Structure Values	Definition	This pattern declares that an object was produced.
Pattern/Structure Values	Abstraction	`crm:E22_Human-Made_Object → crm:P108i_was_produced_by → crm:E12_Production`
Content Values	Type of Value	Uniform Resource Identifier (URI)
	Expected Value	URI minted by LINCS
	Format/Requirements for the Value	URI (preferably dereferenceable)
	Example Values	`<http://id.lincsproject.ca/fH58jkFjLxs>; <http://id.lincsproject.ca/exjMjCxcod2>;` `<http://id.lincsproject.ca/f8sSCltwAwo>`
Case Examples	Typical Example & Abstraction	The University of Saskatchewan Art Gallery dataset states that there is an object that was produced through a production event. `<usask:3359> → crm:P108i_was_produced_by → <lincs:JF5Kgscc7k6>`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links		N/A
Discussion Elements Pertaining to the Pattern		N/A
USask Elements Following this Pattern		Artist; Date of Object; From; To

Pattern in TTL:

<USASK_artwork> a crm:E22_Human-Made_Object ;
	rdfs:label "<USASK_artwork>" ;
	crm:P108i_was_produced_by <production_event> .

<production_event> a crm:E12_Production ;
	rdfs:label "Production event of University of Saskatchewan Art
    Gallery object <ObjectIdentifier>" .

SPARQL: USask data that follows the Production - Production Event pattern

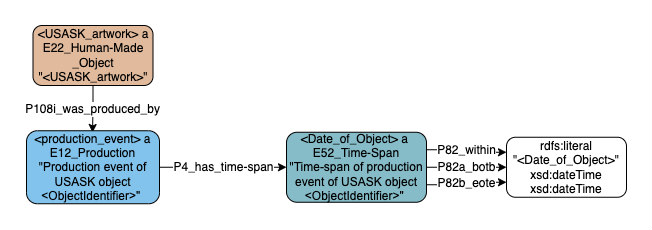

Production Date

Pattern/Structure Values	Definition	This pattern declares that an object was produced on a date.
Pattern/Structure Values	Abstraction	`crm:E22_Human-Made_Object → crm:P108i_was_produced_by → crm:E12_Production → crm:P4_has_time-span → crm:E52_Time-Span → crm:P82_at_some_time_within → rdfs:Literal → crm:P82a_begin_of_the_begin → xsd:dateTime → crm:P82b_end_of_the_end → xsd:dateTime`
Content Values	Type of Value	literal value (text); date-time value
	Expected Value	Literal value (text) from the University of Saskatchewan Art Gallery dataset; date-time value from the University of Saskatchewan Art Gallery dataset
	Format/Requirements for the Value	rdfs:literal; xsd:dateTime
	Example Values	“1982”; “1900s”; “1982-01-01T00:00:00”; “1982-12-31T23:59:59”; “1981”
Case Examples	Typical Example & Abstraction	The University of Saskatchewan Art Gallery dataset states that there is an object that was produced in 1982. `<usask:3359> → crm:P108i_was_produced_by → crm:E12_Production → crm:P4_has_time-span → crm:E52_Time-Span → crm:P82_at_some_time_within → “1982” → crm:P82a_begin_of_the_begin → “1982-01-01T00:00:00”^^xsd:dateTime → crm:P82b_end_of_the_end → “1982-12-31T23:59:59”^^xsd:dateTime`
Case Examples	Edge Case Example & Abstraction	The University of Saskatchewan Art Gallery dataset states that there is an object that was produced some time between 1900 and 1910. `<usask:801> → crm:P108i_was_produced_by → crm:E12_Production → crm:P4_has_time-span → crm:E52_Time-Span → crm:P82_at_some_time_within → “1900s” → crm:P82a_begin_of_the_begin → “1900-01-01T00:00:00”^^xsd:dateTime → crm:P82b_end_of_the_end → “1909-12-31T23:59:59”^^xsd:dateTime`
Resource Links		W3C. (2012, April 5). W3C XML Schema Definition Language (XSD) 1.1 Part 1: Structures. https://www.w3.org/TR/xmlschema11-1/
Discussion Elements Pertaining to the Pattern		N/A
USask Elements Following this Pattern		Date of Object; From; To

Pattern in TTL:

<USASK_artwork> a crm:E22_Human-Made_Object ;
	rdfs:label "<USASK_artwork>" ;
	crm:P108i_was_produced_by <production_event> .

<production_event> a crm:E12_Production ;
    rdfs:label "Production event of University of Saskatchewan Art Gallery object <ObjectIdentifier>" ;
    crm:P4_has_time-span <Date_of_Object> .

<Date_of_Object> a crm:E52_Time-Span ;
    rdfs:label "Time-span of production event of University of Saskatchewan Art Gallery object <ObjectIdentifier>" ;
    crm:P82_at_some_time_within "<Date_of_Object>" ;
    crm:P82a_begin_of_the_begin "<Date_of_Object>"^^xsd:dateTime ;
    crm:P82b_end_of_the_end "<Date_of_Object>"^^xsd:dateTime .

SPARQL: USask data that follows the Production - Production Event Date pattern

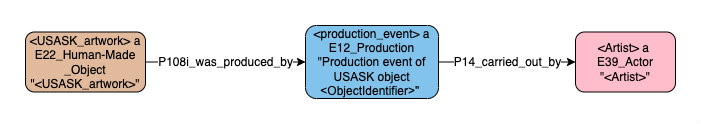

Creator

Pattern/Structure Values	Definition	This pattern declares that an object was produced by an actor.
Pattern/Structure Values	Abstraction	`crm:E22_Human-Made_Object → crm:P108i_was_produced_by → crm:E12_Production → crm:P14_carried_out_by → crm:E39_Actor`
Content Values	Type of Value	Uniform Resource Identifier (URI); literal value (text)
	Expected Value	URI from an existing linked data authority or minted by LINCS; literal value (text) from the University of Saskatchewan Art Gallery dataset
	Format/Requirements for the Value	URI (preferably dereferenceable); rdfs:literal
	Example Values	<http://vocab.getty.edu/ulan/500063770>; <https://www.wikidata.org/wiki/Q1514848>; <http://www.wikidata.org/entity/Q23770211>
Case Examples	Typical Example & Abstraction	The University of Saskatchewan Art Gallery dataset states that there is an object that was created by the artist Marcel Barbeau. `<usask:6681> → crm:P108i_was_produced_by → crm:E12_Production → crm:P14_carried_out_by → <ulan:500063770>` `<ulan:500063770> → a → crm:E21_Person → rdfs:label → “Marcel Barbeau”`
Case Examples	Edge Case Example & Abstraction	The University of Saskatchewan Art Gallery dataset states that the object was also created by the group Peter and Tradul Markgraf / Editions Markgraf Publishing. `<usask:6681> → crm:P108i_was_produced_by → crm:E12_Production → crm:P14_carried_out_by → <lincs:cqgxNOgrwTQ>` `<lincs:cqgxNOgrwTQ> → a → crm:E74_Group → rdfs:label → “Peter and Tradul Markgraf / Editions Markgraf Publishing”`
Resource Links		The Getty Research Institute. (2017, March 7). Union List of Artist Names. https://www.getty.edu/research/tools/vocabularies/ulan/ The Wikimedia Foundation. (2021). Wikidata. https://www.wikidata.org/
Discussion Elements Pertaining to the Pattern		crm:E39_Actor is implemented through one of its subclasses: crm:E21_Person when it is one (1) person, and crm:E74_Group when it is more than one. In most cases, the creator is an E21_Person; however, in some cases the creator is an E74_Group.
USask Elements Following this Pattern		Artist

Pattern in TTL:

<USASK_artwork> a crm:E22_Human-Made_Object ;
	rdfs:label "<object_title>" ;
	crm:P108i_was_produced_by <production_event> .

<production_event> a crm:E12_Production ;
    rdfs:label "Production event of University of Saskatchewan Art Gallery object <ObjectIdentifier>" ;
	crm:P14_carried_out_by <Artist> .

<Artist> a crm:E39_Actor ;
	rdfs:label "<Artist>" .

SPARQL: USask data that follows the Production - Creator pattern

Physical Characteristics

Materials

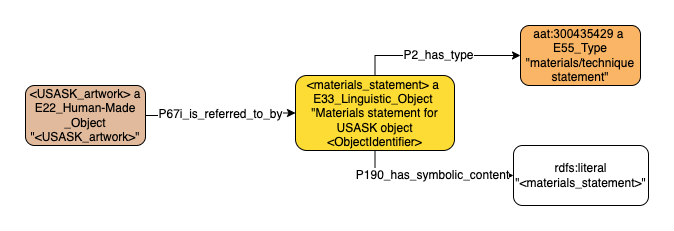

Materials Statement

Pattern/Structure Values	Definition	This pattern declares that an object is made of one or more materials, as described in a text statement.
Pattern/Structure Values	Abstraction	`crm:E22_Human-Made_Thing → crm:P67i_is_referred_to_by → crm:E33_Linguistic_Object → crm:P2_has_type → crm` `aat:300435429` `→ crm:P190_has_symbolic_content → rdfs:literal`
Content Values	Type of Value	literal value (text)
	Expected Value	Literal value (text) from the University of Saskatchewan Art Gallery dataset
	Format/Requirements for the Value	rdfs:literal
	Example Values	“Oil on canvas”; “daguerreotype on copper”; “linocut on soft tracing paper”
Case Examples	Typical Example & Abstraction	The University of Saskatchewan Art Gallery dataset states that there is an object that is an oil on canvas painting. `<usask:801> → crm:P67i_is_referred_to_by → crm:E33_Linguistic_Object` `(crm:P2_has_type → <aat:300435429>) → crm:P190_has_symbolic_content → rdfs:literal`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links		The Getty Research Institute. (2017, March 7). Art & Architecture Thesaurus Online. https://www.getty.edu/research/tools/vocabularies/aat/
Discussion Elements Pertaining to the Pattern		N/A
USask Elements Following this Pattern		Medium

Pattern in TTL:

<USASK_artwork> a crm:E22_Human-Made_Object ;
	rdfs:label "<USASK_artwork>" ;
	crm:P67i_is_referred_to_by <materials_statement> .

<materials_statement> a crm:E33_Linguistic_Object ;
    rdfs:label "Materials statement for University of Saskatchewan Art Gallery object <ObjectIdentifier>" ;
	crm:P2_has_type aat:300435429 ;
	crm:P190_has_symbolic_content "<materials_statement>" .

aat:300435429 a crm:E55_Type ;
	rdfs:label "materials/technique statement" .

SPARQL: USask data that follows the Materials - Statement pattern

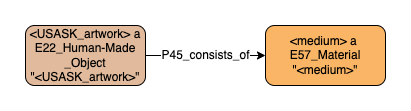

Medium

Pattern/Structure Values	Definition	This pattern declares that an object is made of a type of material.
Pattern/Structure Values	Abstraction	`crm:E22_Human-Made_Thing → crm:P45_consists_of → crm:E57_Material`
Content Values	Type of Value	Uniform Resource Identifier (URI)
	Expected Value	URI from an existing linked data authority or minted by LINCS
	Format/Requirements for the Value	URI (preferably dereferenceable)
	Example Values	<http://vocab.getty.edu/aat/300015050>; <https://www.wikidata.org/wiki/Q296955>; <http://id.lincsproject.ca/Kk9Wmb46spW>
Case Examples	Typical Example & Abstraction	The University of Saskatchewan Art Gallery dataset states that there is an object that consists of oil paint. `<usask:801> → crm:P45_consists_of → <aat:300015050>`
Case Examples	Edge Case Example & Abstraction	The University of Saskatchewan Art Gallery dataset states that there is an object that consists of archival inkjet print. This compound material is combined through a LINCS material URI. `<usask:4961> → crm:P45_consists_of → <lincs:ZFvHQuR6SdH> → crm:P2_has_type → <aat:300218588> → crm:P2_has_type → <aat:300265621>`
Resource Links		The Getty Research Institute. (2017, March 7). Art & Architecture Thesaurus Online. https://www.getty.edu/research/tools/vocabularies/aat/ The Wikimedia Foundation. (2021). Wikidata. https://www.wikidata.org/
Discussion Elements Pertaining to the Pattern		N/A
USask Elements Following this Pattern		Material

Pattern in TTL:

<USASK_artwork> a crm:E22_Human-Made_Object ;
	rdfs:label "<USASK_artwork>" ;
	crm:P45_consists_of <medium>.

<medium> a crm:E57_Material ;
	rdfs:label "<medium>" .

SPARQL: USask data that follows the Materials - Medium pattern

Dimensions

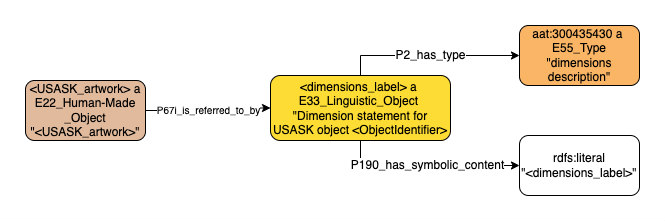

Dimensions Statement

Pattern/Structure Values	Definition	This pattern declares that an object has one or more dimensions, as described in a text statement.
Pattern/Structure Values	Abstraction	`crm:E22_Human-Made_Object → crm:P67i_is_referred_to_by → crm:E33_Linguistic_Object → crm:P2_has_type → crm` `aat:300435430` `→ crm:P190_has_symbolic_content → rdfs:literal`
Content Values	Type of Value	literal value (text)
	Expected Value	Literal value (text) from the University of Saskatchewan Art Gallery dataset
	Format/Requirements for the Value	rdfs:literal
	Example Values	“131 cm W x 222 cm H”; “0 cm L x 89.5 cm W x 180.5 cm H x 0 cm D 0 cm THK”; “85 cm W x 113.2 cm H”
Case Examples	Typical Example & Abstraction	The University of Saskatchewan Art Gallery dataset states that there is an object that is referred to by the dimensions description “66 cm W x 50.7 cm H.” `<usask:3359> → crm:P67i_is_referred_to_by → crm:E33_Linguistic_Object` `(crm:P2_has_type → <aat:300435430>) → crm:P190_has_symbolic_content → “66 cm W x 50.7 cm H”`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links		The Getty Research Institute. (2017, March 7). Art & Architecture Thesaurus Online. https://www.getty.edu/research/tools/vocabularies/aat/
Discussion Elements Pertaining to the Pattern		N/A
USask Elements Following this Pattern		Dimensions

Pattern in TTL:

<USASK_artwork> a crm:E22_Human-Made_Object ;
	rdfs:label "<USASK_artwork>" ;
	crm:P67i_is_referred_to_by <dimensions_label> .

<dimensions_label> a crm:E33_Linguistic_Object ;
    rdfs:label "Dimensions statement for University of Saskatchewan Art Gallery object <ObjectIdentifier>" ;
	crm:P2_has_type aat:300435430 ;
	crm:P190_has_symbolic_content "<dimensions_label>" .

aat:300435430 a crm:E55_Type ;
	rdfs:label "dimensions description" .

SPARQL: USask data that follows the Dimensions - Combined Statement pattern

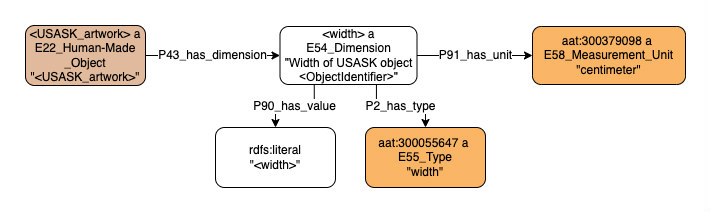

Dimensions Measurements

Pattern/Structure Values	Definition	This pattern declares that an object has one or more dimensions; an object can have a separate dimension for length, width, height, depth, and thickness.
Pattern/Structure Values	Abstraction	`crm:E22_Human-Made_Object → crm:P43_has_dimension → crm:E54_Dimension → crm:P2_has_type → crm:E55_Type → crm:P90_has_value → rdfs:literal → crm:P91_has_unit → crm` `aat:300379098`
Content Values	Type of Value	Uniform Resource Identifier (URI); literal value (text)
	Expected Value	URI from an existing linked data authority; literal value (text) from the University of Saskatchewan Art Gallery dataset
	Format/Requirements for the Value	URI (preferably dereferenceable); rdfs:literal
	Example Values	<http://vocab.getty.edu/aat/300055647>; <http://vocab.getty.edu/aat/300379098>; "58.8"; "16.4"
Case Examples	Typical Example & Abstraction	The University of Saskatchewan Art Gallery dataset states that there is an object with a width of 66 centimetres. `<usask:3359> → crm:P43_has_dimension → crm:E54_Dimension → crm:P2_has_type → <aat:300055647> → crm:P90_has_value → “66” → crm:P91_has_unit → <aat:300379098>`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links		The Getty Research Institute. (2017, March 7). Art & Architecture Thesaurus Online. https://www.getty.edu/research/tools/vocabularies/aat/
Discussion Elements Pertaining to the Pattern		Other E55s: aat:300055645 [“Length”]; aat:300055644 [“Height”]; aat:300072633 [“Depth”]; aat:300055646 [“Thickness”].
USask Elements Following this Pattern		Length; Width; Height; Depth; Thickness

Pattern in TTL:

<USASK_artwork> a crm:E22_Human-Made_Object ;
	rdfs:label "<object_title>" ;
	crm:P43_has_dimension <width> .

<width> a crm:E54_Dimension ;
    	rdfs:label "Width of University of Saskatchewan Art Gallery object <ObjectIdentifier>" ;
	crm:P2_has_type aat:300055647 ;
	crm:P90_has_value <rdfs:literal> ;
	crm:P91_has_unit aat:300379098 .

aat:300055647 a crm:E55_Type ;
	rdfs:label "width" .

aat:300379098 a crm:E58_Measurement_Unit ;
	rdfs:label "centimeters" .

SPARQL: USask data that follows the Dimensions-Length, Width, Height, Depth, & Thickness pattern

Provenance

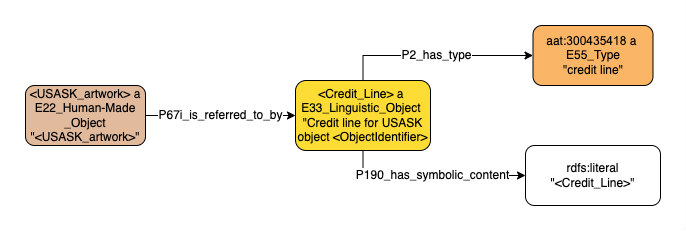

Provenance Statement (Credit Line)

Pattern/Structure Values	Definition	This pattern declares that an object has a credit line statement.
Pattern/Structure Values	Abstraction	`crm:E22_Human-Made_Object → crm:P67i_is_referred_to_by → crm:E33_Linguistic_Object → crm:P2_has_type → crm` `aat:300435418` `→ crm:P190_has_symbolic_content → rdfs:literal`
Content Values	Type of Value	literal value (text)
	Expected Value	Literal value (text) from the University of Saskatchewan Art Gallery dataset
	Format/Requirements for the Value	rdfs:literal
	Example Values	“Collection of the University of Saskatchewan. Gift of Danika Lochhead, 2020.”; “Collection of the University of Saskatchewan. Gift of Leslie Saunders Estate, 1984.”; “Collection of the University of Saskatchewan. Gift of Stephen Rowat, 1997.”
Case Examples	Typical Example & Abstraction	The University of Saskatchewan Art Gallery dataset states that there is an object that is credited as “Collection of the University of Saskatchewan. Gift of Danika Lochhead, 2020.” `<usask:3359> → crm:P67i_is_referred_to_by → crm:E33_Linguistic_Object` `(crm:P2_has_type → <aat:300435418> → crm:P190_has_symbolic_content → “Collection of the University of Saskatchewan. Gift of Danika Lochhead, 2020.”`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links		The Getty Research Institute. (2017, March 7). Art & Architecture Thesaurus Online. https://www.getty.edu/research/tools/vocabularies/aat/
Discussion Elements Pertaining to the Pattern		N/A
USask Elements Following this Pattern		Credit Line

Pattern in TTL:

<USASK_artwork> a crm:E22_Human-Made_Object ;
	rdfs:label "<object_title>" ;
	crm:P67i_is_referred_to_by <Credit_Line> .

<Credit_Line> a crm:E33_Linguistic_Object ;
    rdfs:label "Credit line for University of Saskatchewan Art Gallery object <ObjectIdentifier>" ;
	crm:P2_has_type aat:300435418 ;
	crm:P190_has_symbolic_content "<Credit_Line>" .

aat:300435418 a crm:E55_Type ;
	rdfs:label "credit line" .

SPARQL: USask data that follows the Documentation Statements - Credit Line pattern

Owners

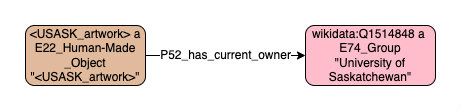

Current Owner

Pattern/Structure Values	Definition	This pattern declares that an object has a current owner.
Pattern/Structure Values	Abstraction	`crm:E22_Human-Made_Object → crm:P52_has_current_owner → crm:E74_Group`
Content Values	Type of Value	Uniform Resource Identifier (URI)
	Expected Value	URI from an existing linked data authority or minted by LINCS
	Format/Requirements for the Value	URI (preferably dereferenceable)
	Example Values	<https://www.wikidata.org/wiki/Q1514848>
Case Examples	Typical Example & Abstraction	The University of Saskatchewan Art Gallery dataset states that there is an object that is currently owned by the University of Saskatchewan. `<usask:801> → crm:P52_has_current_owner → <wikidata:Q1514848>` `<wikidata:Q1514848> → a → crm:E74_Group`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links		The Getty Research Institute. (2017, March 7). Union List of Artist Names. https://www.getty.edu/research/tools/vocabularies/ulan/ The Wikimedia Foundation. (2021). Wikidata. https://www.wikidata.org/
Discussion Elements Pertaining to the Pattern		N/A
USask Elements Following this Pattern		Current Owner

Pattern in TTL:

<USASK_artwork> a crm:E22_Human-Made_Object ;
	rdfs:label "<USASK_artwork>" ;
	crm:P52_has_current_owner wikidata:Q1514848 .

wikidata:Q1514848 a crm:E74_Group ;
	rdfs:label "University of Saskatchewan" .

SPARQL: USask data that follows the People - Current Owner pattern

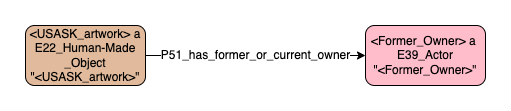

Former Owner

Pattern/Structure Values	Definition	This pattern declares that an object has a former owner.
Pattern/Structure Values	Abstraction	`crm:E22_Human-Made_Object → crm:P51_has_former_or_current_owner → crm:E39_Actor`
Content Values	Type of Value	Uniform Resource Identifier (URI)
	Expected Value	URI from an existing linked data authority or minted by LINCS
	Format/Requirements for the Value	URI (preferably dereferenceable)
	Example Values	<http://vocab.getty.edu/ulan/500063770>; <https://www.wikidata.org/wiki/Q1514848>; <http://id.lincsproject.ca/D54tPKvtykr>
Case Examples	Typical Example & Abstraction	The University of Saskatchewan Art Gallery dataset states that there is an object that was previously owned by Norm Biram. `<usask:801> → crm:P51_has_former_or_current_owner → <lincs:JFaPXVXFSB5>` `<lincs:JFaPXVXFSB5> → a → crm:E21_Person`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links		The Getty Research Institute. (2017, March 7). Union List of Artist Names. https://www.getty.edu/research/tools/vocabularies/ulan/ The Wikimedia Foundation. (2021). Wikidata. https://www.wikidata.org/
Discussion Elements Pertaining to the Pattern		crm:E39_Actor is implemented through one of its subclasses: crm:E21_Person when it is one (1) person, and crm:E74_Group when it is more than one.
USask Elements Following this Pattern		Original Owner

Pattern in TTL:

<USASK_artwork> a crm:E22_Human-Made_Object ;
	rdfs:label "<USASK_artwork>" ;
	crm:P51_has_former_or_current_owner <Former_Owner> .

<Former_Owner> a crm:E39_Actor ;
	rdfs:label "<Former_Owner>" .

SPARQL: USask data that follows the People - Former Owner pattern

Acquisition

Acquisition Event

Pattern/Structure Values	Definition	This pattern declares that an object changed ownership through an acquisition event.
Pattern/Structure Values	Abstraction	`crm:E22_Human-Made_Object → crm:P24i_changed_ownership_through → crm:E8_Acquisition`
Content Values	Type of Value	Uniform Resource Identifier (URI)
	Expected Value	URI minted by LINCS
	Format/Requirements for the Value	URI (preferably dereferenceable)
	Example Values	<http://id.lincsproject.ca/yoxyZ0K10z6>; <http://id.lincsproject.ca/pjfS3EV7t8W>; <http://id.lincsproject.ca/F6l5wcRnIIB>
Case Examples	Typical Example & Abstraction	The University of Saskatchewan Art Gallery dataset states that there is an object that was acquired through an acquisition event. `<usask:3359> → crm:P24i_changed_ownership_through → <lincs:6xRfXM0Tej0>`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links		N/A
Discussion Elements Pertaining to the Pattern		N/A

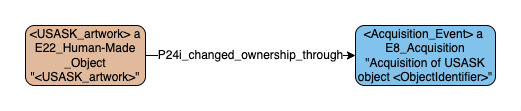

USask Elements Following this Pattern		Acquisition Date

Pattern in TTL:

<USASK_artwork> a crm:E22_Human-Made_Object ;
	rdfs:label "<USASK_artwork>" ;
	crm:P24i_changed_ownership_through <Acquisition_Event> .

<Acquisition_Event> a crm:E8_Acquisition ;
    rdfs:label "Acquisition of University of Saskatchewan Art Gallery object <ObjectIdentifier>" .

SPARQL: USask data that follows the Activities - Acquisition Event pattern

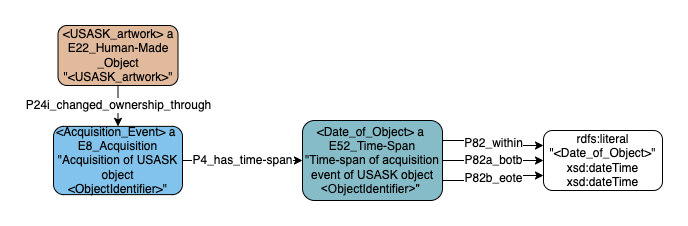

Acquisition Date

Pattern/Structure Values	Definition	This pattern declares that an object changed ownership on a date.
Pattern/Structure Values	Abstraction	`crm:E22_Human-Made_Object → crm:P24i_changed_ownership_through → crm:E8_Acquisition → crm:P4_has_time-span → crm:E52_Time-Span → crm:P82_at_some_time_within → rdfs:Literal → crm:P82a_begin_of_the_begin → xsd:dateTime → crm:P82b_end_of_the_end → xsd:dateTime`
Content Values	Type of Value	literal value (text); date-time value
	Expected Value	Literal value (text) from the University of Saskatchewan Art Gallery dataset; date-time value from the University of Saskatchewan Art Gallery dataset
	Format/Requirements for the Value	rdfs:literal; xsd:dateTime
	Example Values	“2020”; “2020-01-01”; “2020-12-31”
Case Examples	Typical Example & Abstraction	The University of Saskatchewan Art Gallery dataset states that there is an object that was acquired in 2020. `<usask:3359> → crm:P24i_changed_ownership_through → crm:E8_Acquisition → crm:P4_has_time-span → crm:E52_Time-Span → crm:P82_at_some_time_within → “2020” → crm:P82a_begin_of_the_begin → “2020-01-01” → crm:P82b_end_of_the_end → “2020-12-31”`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links		W3C. (2012, April 5). W3C XML Schema Definition Language (XSD) 1.1 Part 1: Structures. https://www.w3.org/TR/xmlschema11-1/
Discussion Elements Pertaining to the Pattern		N/A
USask Elements Following this Pattern		Acquisition Date

Pattern in TTL:

<USASK_artwork> a crm:E22_Human-Made_Object ;
	rdfs:label "<USASK_artwork>" ;
	crm:P24i_changed_ownership_through <Acquisition_Event> .

<Acquisition_Event> a crm:E8_Acquisition ;
    rdfs:label "Acquisition of University of Saskatchewan Art Gallery object <ObjectIdentifier>" ;
	crm:P4_has_time-span <Acquisition_Time-Span> .

<Acquisition_Time-Span> a crm:E52_Time-Span ;
    rdfs:label "Acquisition event time-span of University of Saskatchewan Art Gallery object <ObjectIdentifier>" ;
	crm:P82_at_some_time_within "<Acquisition_Date>" ;
	crm:P82a_begin_of_the_begin "<Acquisition_Date>"^^xsd:dateTime ;
	crm:P82b_end_of_the_end "<Acquisition_Date>"^^xsd:dateTime .

SPARQL: USask data that follows the Activities - Acquisition Event Date pattern

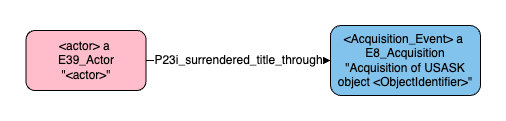

Relinquishing Ownership

Pattern/Structure Values	Definition	This pattern declares that an actor relinquished ownership of an object through an acquisition event.
Pattern/Structure Values	Abstraction	`crm:E39_Actor → crm:P23i_surrendered_title_through →` `crm:E8_Acquisition`
Content Values	Type of Value	Uniform Resource Identifier (URI)
	Expected Value	URI minted by LINCS
	Format/Requirements for the Value	URI (preferably dereferenceable)
	Example Values	<http://id.lincsproject.ca/dwDjpbKSzW6>; <http://id.lincsproject.ca/P0UA275cHpW>; <http://id.lincsproject.ca/137rL9LrYlv>
Case Examples	Typical Example & Abstraction	The University of Saskatchewan Art Gallery dataset states that Norm Biram surrendered an object through an acquisition event. `<lincs:9HyksKkIfFA> → crm:P23i_surrendered_title_through → <lincs:lsgSoeNnUkf>`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links		The Getty Research Institute. (2017, March 7). Union List of Artist Names. https://www.getty.edu/research/tools/vocabularies/ulan/ The Wikimedia Foundation. (2021). Wikidata. https://www.wikidata.org/
Discussion Elements Pertaining to the Pattern		crm:E39_Actor is implemented through one of its subclasses: crm:E21_Person when it is one (1) person, and crm:E74_Group when it is more than one.
USask Elements Following this Pattern		Original Owner

Pattern in TTL:

<actor> a crm:E39_Actor ;
	rdfs:label "<actor>" ;
	crm:P23i_surrendered_title_through <Acquisition_Event> .

<Acquisition_Event> a crm:E8_Acquisition ;
    rdfs:label "Acquisition of University of Saskatchewan Art Gallery object <ObjectIdentifier>" .

SPARQL: USask data that follows the Activities - Acquisition Event Relinquishing Ownership pattern

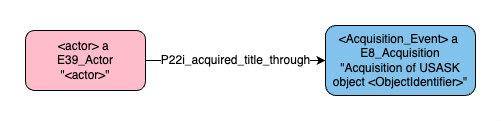

Gaining Ownership

Pattern/Structure Values	Definition	This pattern declares that an actor gained ownership of an object through an acquisition event.
Pattern/Structure Values	Abstraction	`crm:E39_Actor → crm:P22i_acquired_title_through → crm:E8_Acquisition`
Content Values	Type of Value	Uniform Resource Identifier (URI)
	Expected Value	URI minted by LINCS
	Format/Requirements for the Value	URI (preferably dereferenceable)
	Example Values	<http://id.lincsproject.ca/U7TNy3t9sOd>; <http://id.lincsproject.ca/ruQUldTKggc>; <http://id.lincsproject.ca/dIYZhbzCqJE>
Case Examples	Typical Example & Abstraction	The University of Saskatchewan Art Gallery dataset states that University of Saskatchewan gained ownership of an object through an acquisition event. `<wikidata:Q1514848> → crm:P22i_aquired_title_through → <lincs:U7TNy3t9sOd>`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links		The Getty Research Institute. (2017, March 7). Union List of Artist Names. https://www.getty.edu/research/tools/vocabularies/ulan/ The Wikimedia Foundation. (2021). Wikidata. https://www.wikidata.org/
Discussion Elements Pertaining to the Pattern		crm:E39_Actor is implemented through one of its subclasses: crm:E21_Person when it is one (1) person, and crm:E74_Group when it is more than one.
USask Elements Following this Pattern		Current Owner

Pattern in TTL:

<actor> a crm:E39_Actor ;
	rdfs:label "<actor>" ;
	crm:P22i_acquired_title_through <Acquisition_Event> .

<Acquisition_Event> a crm:E8_Acquisition ;
    rdfs:label "Acquisition of University of Saskatchewan Art Gallery object <ObjectIdentifier>" .

SPARQL: USask data that follows the Activities - Acquisition Event Gaining Ownership pattern

Purpose​

Acronyms​

Main Classes​

Overview Diagram​

Nodes​

Basic Patterns​

Identifiers​

Accession Numbers​

Titles​

Categories & Classifications (Types)​

Visual Representation​

Physical Objects​

Production​

Production Event​

Production Date​

Creator​

Physical Characteristics​

Materials​

Materials Statement​

Medium​

Dimensions​

Dimensions Statement​

Dimensions Measurements​

Provenance​

Provenance Statement (Credit Line)​

Owners​

Current Owner​

Former Owner​

Acquisition​

Acquisition Event​

Acquisition Date​

Relinquishing Ownership​

Gaining Ownership​

Purpose

Acronyms

Main Classes

Overview Diagram

Nodes

Basic Patterns

Identifiers

Accession Numbers

Titles

Categories & Classifications (Types)

Visual Representation

Physical Objects

Production

Production Event

Production Date

Creator

Physical Characteristics

Materials

Materials Statement

Medium

Dimensions

Dimensions Statement

Dimensions Measurements

Provenance

Provenance Statement (Credit Line)

Owners

Current Owner

Former Owner

Acquisition

Acquisition Event

Acquisition Date

Relinquishing Ownership

Gaining Ownership
