MoEML Gazetteer Application Profile

Purpose

To document how Map of Early Modern London gazetteer data is modelled for compatibility with the wider LINCS data model. This document provides patterns used in the mapping of Map of Early Modern London gazetteer data which correspond to the categories outlined in the LINCS Application Profile.

This document introduces class and property concepts as used in this specific context (LINCS and the Map of Early Modern London gazetteer dataset), and are not complete definitions. Consult CIDOC CRM v. 7.1.1 documentation for full class and property descriptions.

Acronyms

Ontology Acronyms:

CIDOC-CRM - CIDOC Conceptual Reference Model
RDF - Resource Description Framework

Vocabulary and Authority Acronyms:

EML Place Types - Early Modern London Place Types Vocabulary
MoEML Placeography - Map of Early Modern London Placeography

Main Classes

Entity Type	Class	Declaration Snippet (TTL)
Place	crm:E53_Place	`<place> a crm:E53_Place .`
Identifier	crm:E42_Identifier	`<place_id> a crm:E42_Identifier ; crm:P2_has_type aat:300404012 .`
Place Name	crm:E33_E41_Linguistic_Appellation	`<name> a crm:E33_E41_Linguistic_Appellation .`
Use or Function	crm:E55_Type	`<use_or_function> a crm:E55_Type .`
Description	crm:E33_Linguistic_Object	`<description> a crm:E33_Linguistic_Object ; crm:P2_has_type aat:300411780 .`
Web Page	crm:E73_Information_Object	`<web_page> a crm:E73_Information_Object ; crm:P2_has_type wikidata:Q36774 .`
Geographies	rdfs:literal	rdfs:literal

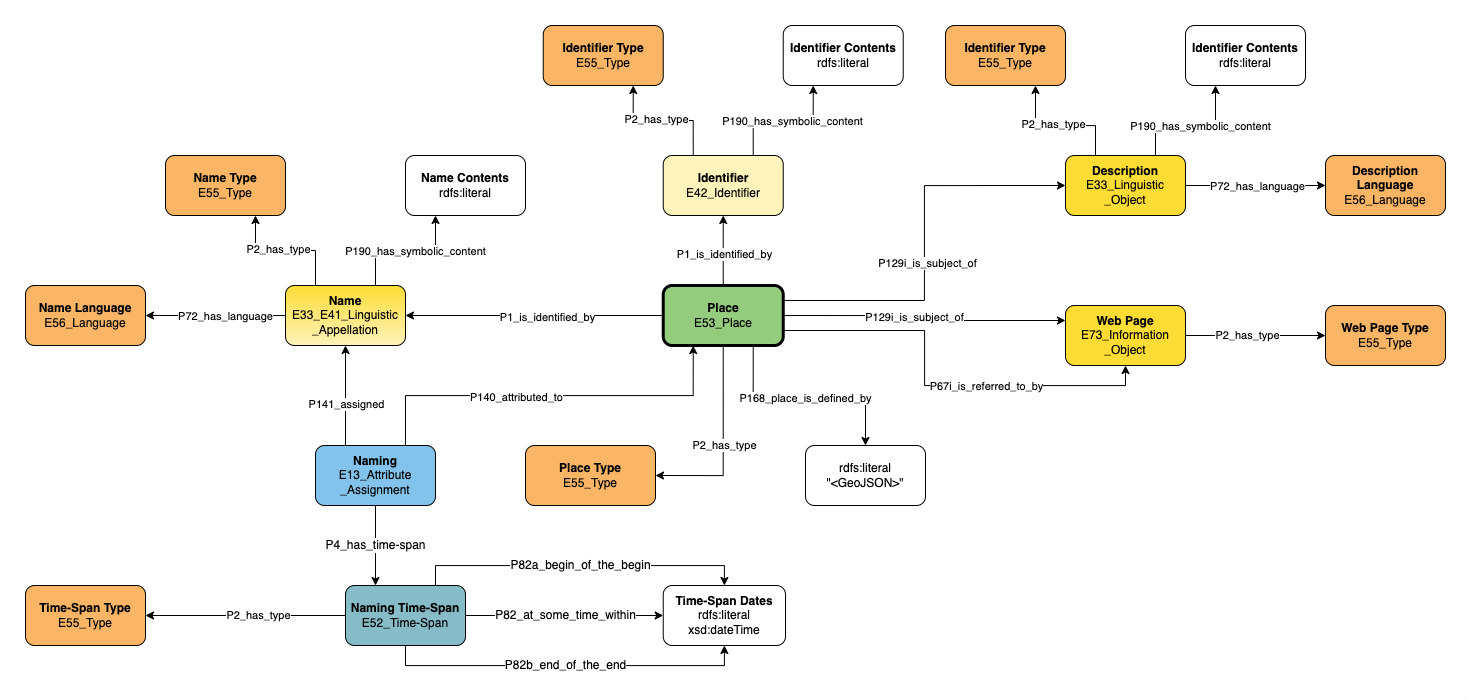

Overview Diagram

Below is an image of the application profile overview diagram. Follow this link for a zoomable, more readable version. The segments below align with the document sections.

Nodes

Place Declaration

Pattern/Structure Values	Definition	This pattern declares the existence of a place.
Pattern/Structure Values	Abstraction	`crm:E53_Place`
Content Values	Type of Value	Uniform Resource Identifier (URI)
	Expected Value	URI pulled directly from the MoEML dataset
	Format/Requirements for the Value	URI
	Example Values	`<http://mapoflondon.uvic.ca/STSA1>`
Case Examples	Typical Example & Abstraction	The Map of Early Modern London Gazetteer states that <http://mapoflondon.uvic.ca/STSA1> is a place, St. Saviour (Southwark). `<http://mapoflondon.uvic.ca/STSA1> a crm:E53_Place ; rdfs:label “St. Saviour (Southwark)”`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links	Entity and Property Definitions from Source Creators	N/A
Resource Links	Additional Related References	N/A
Discussion Elements Pertaining to the Pattern		N/A
MoEML Elements Following this Pattern		MoEML: `<ref>`

Pattern in TTL:

<MoEML:Place> a crm:E53_Place ;
    rdfs:label "<display_name>" .

SPARQL: Coming Soon

Identifiers

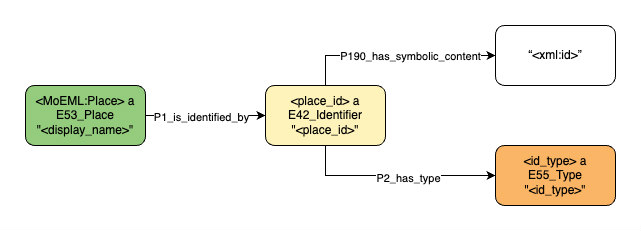

IDs

Pattern/Structure Values	Definition	This pattern declares the identifier of a place.
Pattern/Structure Values	Abstraction	`crm:E53_Place → crm:P1_is_identified_by → crm:E42_Identifier → crm:P190_has_symbolic_content → rdfs:literal → crm:P2_has_type → crm:E55_Type`
Content Values	Type of Value	Uniform Resource Identifier (URI); Literal or string value
	Expected Value	URIs minted by LINCS; Literal or string value pulled directly from the MoEML dataset
	Format/Requirements for the Value	Rdfs:literal, xsd:string, URI
	Example Values	`“STSA1”`, `<http://temp.lincsproject.ca/moeml_id>`, `<http://vocab.getty.edu/aat/300404012>`
Case Examples	Typical Example & Abstraction	The Map of Early Modern London Gazetteer states that St. Saviour (Southwark) (http://mapoflondon.uvic.ca/STSA1) is identified by “STSA1”. `<http://mapoflondon.uvic.ca/STSA1> → crm:P1_is_identified_by → crm:E42_Identifier → crm:P190_has_symbolic_content → “STSA1” → crm:P2_has_type → <http://temp.lincsproject.ca/moeml_id>, <http://vocab.getty.edu/aat/300404012> .`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links	Entity and Property Definitions from Source Creators	N/A
Resource Links	Additional Related References	N/A
Discussion Elements Pertaining to the Pattern		N/A
MoEML Elements Following this Pattern		MoEML: `<ref>`

Pattern in TTL:

<MoEML:Place> a crm:E53_Place ;
   rdfs:label "<display_name>" ;
   crm:P1_is_identified_by <place_id> .

<place_id> a crm:E42_Identifier ;
   rdfs:label "Identifier for MoEML place <place_display_name>" ;
   crm:P190_has_symbolic_content "<xml:id>" ;
   crm:P2_has_type <http://temp.lincsproject.ca/moeml_id>,
   <http://vocab.getty.edu/aat/300404012> .

<http://temp.lincsproject.ca/moeml_id> a crm:E55_Type ;
   rdfs:label "MoEML project identifier" .

<http://vocab.getty.edu/aat/300404012> a crm:E55_Type ;
   rdfs:label "unique identifier" .

SPARQL: Coming Soon

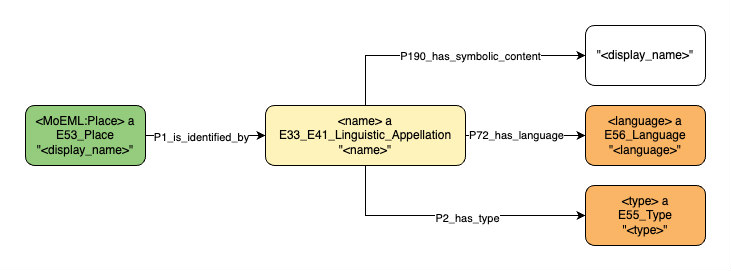

Names

Pattern/Structure Values	Definition	This pattern declares a name used to identify a place.
Pattern/Structure Values	Abstraction	`crm:E53_Place → crm:P1_is_identified_by → crm:E33_E41_Linguistic_Appellation → crm:P2_has_type → crm:E55_Type → crm:P72_has_language → crm:E56_Language → crm:P190_has_symbolic_content → rdfs:literal`
Content Values	Type of Value	Uniform Resource Identifier (URI); Literal or string value
	Expected Value	URIs minted by LINCS; Literal or string value pulled directly from the MoEML dataset
	Format/Requirements for the Value	Rdfs:literal, xsd:string, URI
	Example Values	`<http://temp.lincsproject.ca/name>`, `<http://temp.lincsproject.ca/english>`, `“St. Saviour (Southwark)”`
Case Examples	Typical Example & Abstraction	The Map of Early Modern London Gazetteer states that St. Saviour (Southwark) ( http://mapoflondon.uvic.ca/STSA1 ) is named “St. Saviour (Southwark)” which is in English (http://temp.lincsproject.ca/english). `<http://mapoflondon.uvic.ca/STSA1> → crm:P1_is_identified_by → crm:E33_E41_Linguistic_Appellation → crm:P2_has_type → <http://temp.lincsproject.ca/name> → crm:P72_has_language → <http://temp.lincsproject.ca/english> → crm:P190_has_symbolic_content → “St. Saviour (Southwark)”`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links	Entity and Property Definitions from Source Creators	N/A
Resource Links	Additional Related References	N/A
Discussion Elements Pertaining to the Pattern		N/A
MoEML Elements Following this Pattern		MoEML: `<placename>`

Pattern in TTL:

<MoEML:Place> a crm:E53_Place ;
   rdfs:label "<display_name>" ;
   crm:P1_is_identified_by <name>.

<name> a crm:E33_E41_Linguistic_Appellation ;
   rdfs:label "<name>" ;
   crm:P2_has_type <type> ;
   crm:P72_has_language <language> ;
   crm:P190_has_symbolic_content "<display_name>" .

<type> a crm:E55_Type ;
   rdfs:label "<type>" .

<language> a crm:E55_Type ;
   rdfs:label "<language>" .

SPARQL: Coming Soon

Geographies (Coordinates)

Pattern/Structure Values	Definition	This pattern declares the coordinates of a place.
Pattern/Structure Values	Abstraction	`crm:E53_Place → crm:P168_place_is_defined_by → rdfs:literal`
Content Values	Type of Value	Literal or string value
	Expected Value	Literal or string value pulled directly from the MoEML dataset
	Format/Requirements for the Value	Rdfs:literal or xsd:string
	Example Values	`“POINT(51.506111 -0.089722)”`, `“POINT(51.506261 -0.089859)”`, `“POINT(51.499663 -0.124578)”`
Case Examples	Typical Example & Abstraction	The Map of Early Modern London Gazetteer states that St. Saviour (Southwark) could be located at the coordinates “-0.089722,51.506111.” `<http://mapoflondon.uvic.ca/STSA1> → → crm:P168_place_is_defined_by → “POINT(51.506111 -0.089722)”`
Case Examples	Edge Case Example & Abstraction	GeoJSON can use 6 types of coordinates: Point MultiPoint LineString Polygon MultiPolygon MultiLineString This dataset uses all of these; most commonly used is “point.”
Resource Links	Entity and Property Definitions from Source Creators	N/A
Resource Links	Additional Related References	Internet Engineering Task Force (IETF). GeoJSON. https://geojson.org/
Discussion Elements Pertaining to the Pattern		N/A
MoEML Elements Following this Pattern		MoEML: `<geo>`

Pattern in TTL:

<MoEML:Place> a crm:E53_Place ;
   rdfs:label "display_name" ;
   crm:P168_place_is_defined_by "<GeoJSON>" .

SPARQL: Coming Soon

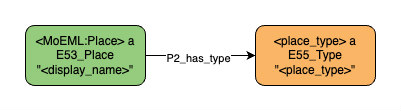

Uses/Functions (Types)

Pattern/Structure Values	Definition	This pattern declares the type of a place.
Pattern/Structure Values	Abstraction	`crm:E53_Place → crm:P2_has_type → crm:E55_Type`
Content Values	Type of Value	Uniform Resource Identifier (URI)
	Expected Value	URI minted by LINCS
	Format/Requirements for the Value	URI
	Example Values	`<http://id.lincsproject.ca/eml/Church>`
Case Examples	Typical Example & Abstraction	The Map of Early Modern London Gazetteer states that St. Saviour (Southwark) is a type of eml:Church. `<http://mapoflondon.uvic.ca/STSA1> → crm:P2_has_type → <http://id.lincsproject.ca/eml/Church>.`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links	Entity and Property Definitions from Source Creators	This dataset uses the Early Modern London Place Types vocabulary (see also on SKOSMOS ) to represent uses and functions.
Resource Links	Additional Related References	The MoEML Team and Martin D. Holmes. Locations in Early Modern London. The Map of Early Modern London, Edition 7.0. Ed. Janelle Jenstad. Victoria: University of Victoria. mapoflondon.uvic.ca/edition/7.0/mdtEncyclopediaLocation_subcategories.htm.
Discussion Elements Pertaining to the Pattern		Early Modern London Place Type Vocabulary Alignment
MoEML Elements Following this Pattern		MoEML: `<catRef>`

Pattern in TTL:

<MoEML:Place> a crm:E53_Place ;
   rdfs:label "<display_name>" ;
   crm:P2_has_type <place_type>.

<place_type> a crm:E55_Type ;
   rdfs:label "<place_type>".

SPARQL: Coming Soon

Subject of Other Documents

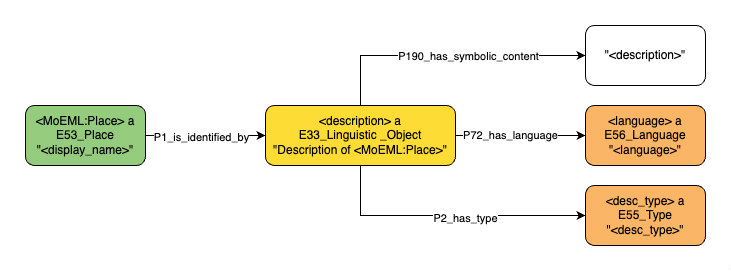

Descriptions

Pattern/Structure Values	Definition	This pattern declares a place is the main subject of a description.
Pattern/Structure Values	Abstraction	`crm:E53_Place → crm:P129i_is_subject_of → crm:E33_Linguistic_Object → crm:P72_has_language → crm:E56_Language → crm:P190_has_symbolic_content → rdfs:literal → crm:P2_has_type → crm:E55_Type`
Content Values	Type of Value	Uniform Resource Identifier (URI); Literal or string value
	Expected Value	URIs minted by LINCS; Literal or string value pulled directly from the MoEML dataset
	Format/Requirements for the Value	Rdfs:literal, xsd:string, URI
	Example Values	`<http://temp.lincsproject.ca/english>`, `“St. Saviour (Southwark) dates back at least to 1106. It was originally known by the name St. Mary Overies, with Overies referring to its being over the Thames, that is, on its southern bank. After the period of the Dissolution, the church was rededicated and renamed St. Saviour (Sugden 335). St. Saviour (Southwark) is visible on the Agas map along New Rents street in Southwark. It is marked with the label S. Mary Owber.”` , `<http://temp.lincsproject.ca/description>`
Case Examples	Typical Example & Abstraction	The Map of Early Modern London Gazetteer states that St. Saviour (Southwark) is the subject of the description <http://temp.lincsproject.ca/STSA1_description>. <http://mapoflondon.uvic.ca/STSA1> → crm:P129i_is_subject_of → crm:E33_Linguistic_Object → crm:P72_has_language → <http://temp.lincsproject.ca/english> → crm:P190_has_symbolic_content → “St. Saviour (Southwark) dates back at least to 1106. It was originally known by the name St. Mary Overies, with Overies referring to its being over the Thames, that is, on its southern bank. After the period of the Dissolution, the church was rededicated and renamed St. Saviour (Sugden 335). St. Saviour (Southwark) is visible on the Agas map along New Rents street in Southwark. It is marked with the label S. Mary Owber.” → crm:P2_has_type → <http://temp.lincsproject.ca/description>
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links	Entity and Property Definitions from Source Creators	N/A
Resource Links	Additional Related References	N/A
Discussion Elements Pertaining to the Pattern		N/A
MoEML Elements Following this Pattern		N/A

Pattern in TTL:

<MoEML:Place> a crm:E53_Place ;
   rdfs:label "<display_name>" ;
   crm:P129i_is_subject_of "<description>" .

<description> a crm:E33_Linguistic_Object ;
   rdfs:label "Description of <MoEML:Place>" ;
   crm:P72_has_language <language> ;
   crm:P190_has_symbolic_content "<description>" ;
   crm:P2_has_type <desc_type> .

<language> a crm:E56_Language ;
   rdfs:label "<language_type>" .

<desc_type> a crm:E55_Type ;
   rdfs:label "<desc_type>" .

SPARQL: Coming Soon

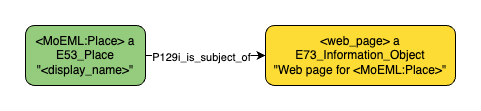

Web Pages

Pattern/Structure Values	Definition	This pattern declares a place is the main subject of a web page.
Pattern/Structure Values	Abstraction	`crm:E53_Place → crm:P129i_is_subject_of → crm:E73_Information_Object`
Content Values	Type of Value	Uniform Resource Identifier (URI)
	Expected Value	URI pulled directly from the MoEML dataset
	Format/Requirements for the Value	URI
	Example Values	`<http://mapoflondon.uvic.ca/STSA1.htm>`
Case Examples	Typical Example & Abstraction	The Map of Early Modern London Gazetteer states that St. Saviour (Southwark) is the main subject of <https://mapoflondon.uvic.ca/PERS1.htm>. This pattern pertains to subject web pages. `<http://mapoflondon.uvic.ca/STSA1> → crm:P129i_is_subject_of → <http://mapoflondon.uvic.ca/STSA1.htm>`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links	Entity and Property Definitions from Source Creators	N/A
Resource Links	Additional Related References	N/A
Discussion Elements Pertaining to the Pattern		N/A
MoEML Elements Following this Pattern		MoEML: `<ref>`

Pattern in TTL:

<MoEML:Place> a crm:E53_Place ;
   rdfs:label "<display_name>" ;
   crm:P129i_is_subject_of "<web_page>" .

<web_page> a crm:E73_Information_Object ;
   rdfs:label "Web page for <MoEML:Place>" .

SPARQL: Coming Soon

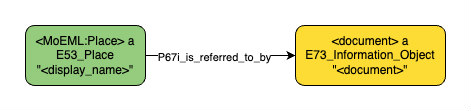

Mentioned/Referenced/Described in Documents

Pattern/Structure Values	Definition	This pattern declares that a place is referred to by a document.
Pattern/Structure Values	Abstraction	`crm:E53_Place → crm:P67i_is_referred_to_by → crm:E73_Information_Object`
Content Values	Type of Value	Uniform Resource Identifier (URI)
	Expected Value	URI pulled directly from the MoEML dataset
	Format/Requirements for the Value	URI
	Example Values	`<https://mapoflondon.uvic.ca/PERS1.htm>`
Case Examples	Typical Example & Abstraction	The Map of Early Modern London Gazetteer states that St. Saviour (Southwark) is referred to by <https://mapoflondon.uvic.ca/PERS1.htm>. `<http://mapoflondon.uvic.ca/STSA1> → crm:P67i_is_referred_to_by → <https://mapoflondon.uvic.ca/PERS1.htm>`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links	Entity and Property Definitions from Source Creators	N/A
Resource Links	Additional Related References	N/A
Discussion Elements Pertaining to the Pattern		N/A
MoEML Elements Following this Pattern		N/A

Pattern in TTL:

<MoEML:Place> a crm:E53_Place ;
   rdfs:label "<display_name>" ;
   crm:P67i_is_referred_to_by <document> .

<document> a crm:E73_Information_Object ;
   rdfs:label "<document>" .

SPARQL: Coming Soon
